Chart Widget - Rack PDU Phase Leg Loads per POD

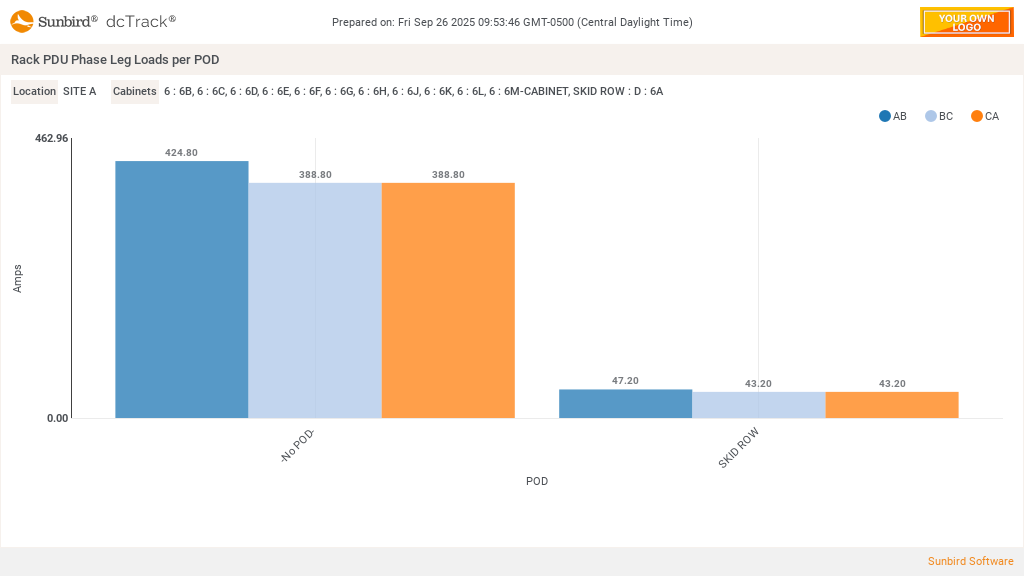

Shows the actual load in Amps for each phase leg for the selected location and cabinets per Pod. Note: the actual data is based on cached latest readings from Power IQ. New latest readings are requested when this widget is refreshed.

Additional Info

Date Created: Thursday, 09 April 2026
Category: Power
Use Case: The user would like to compare the summed rack pdu power loads within a pod, grouped by phase leg. This data can be used to uncover phase imbalances for a given aisle/pod or across multiple aisles/pods.

Download attachments:

rpduPhaseLegLoadByPod.zip (0 Downloads)
