Shows the Sum Budget, Sum Actual and Node Actual of Breakers as a Utilization Percent or consumption in kW or Amps vs Capacity for the selected location, for the selected level in the power chain and the selected parent items of that level. Utilization up to 100% is acceptable because utilization is based on the 80% breaker derating when derating applies. Note: the actual data is based on cached latest readings from Power IQ or a 3rd-party system pushing to dcTrack. When Y-Axis is in Amps, the max value of the 3 phases is displayed.

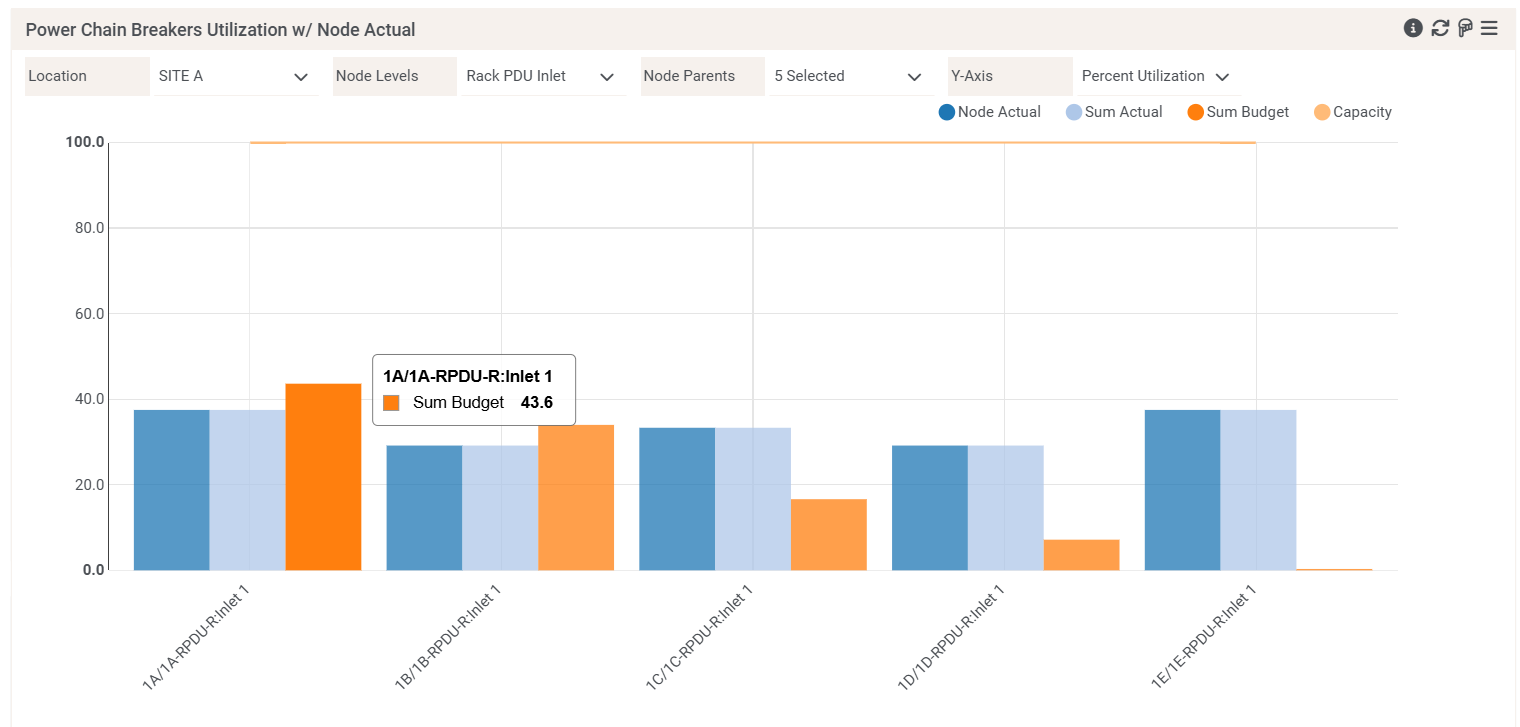

Chart Widget - Power Chain Breakers Utilization w/ Node Actual
Additional Info
- Date Created: Monday, 31 August 2026
- Category: Power
-
Dependencies:
Requires PowerIQ integration
Download attachments:
- powerChainBreakerUtilizationPercentAmpsPower.zip (6 Downloads)
