SQL Widget - PS to RPDU Outlet to UPS Bank

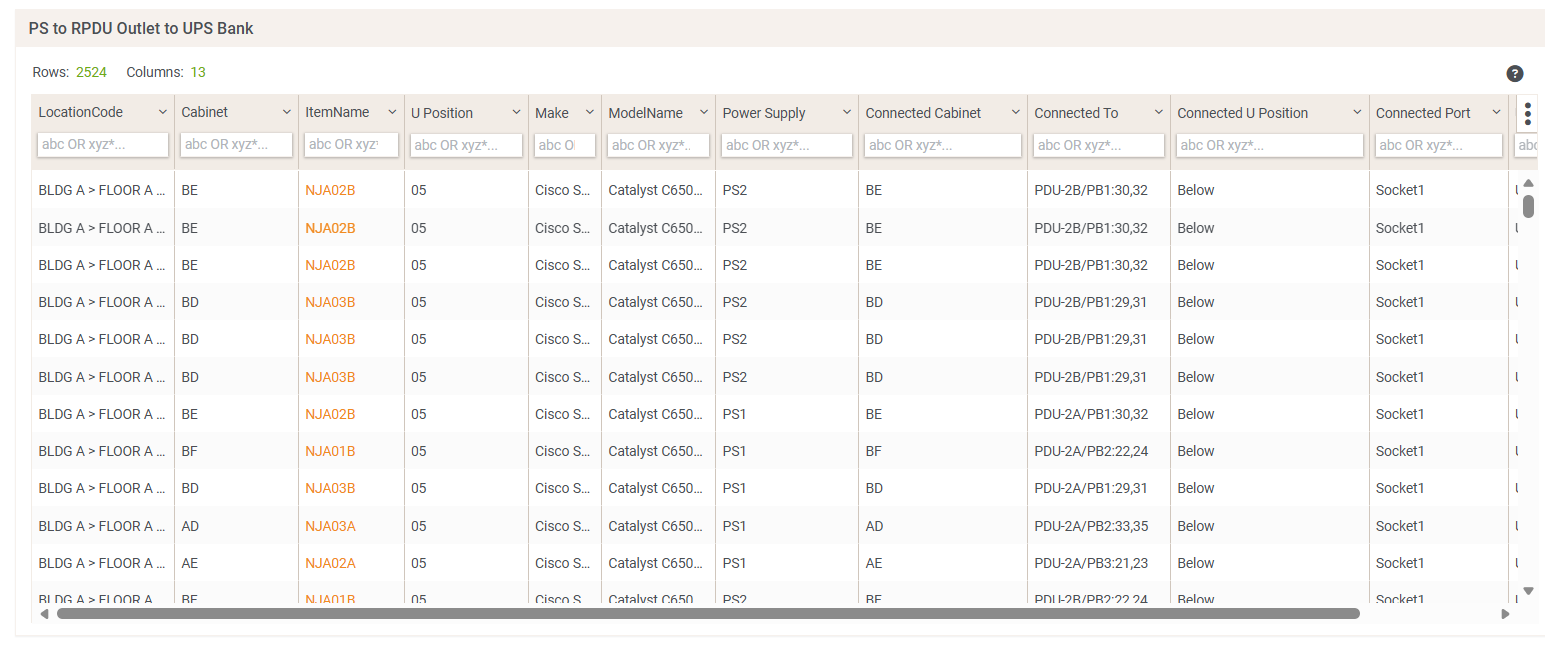

This grid widget displays the power chain beginning at the racked-item power source level and connecting all the way to the Uninterruptable Power Supply.

Additional Info

Date Created: Thursday, 01 October 2026
Category: Data Reports
Use Case: This grid widget is intended to display all devices affected during an outage when power is lost at the UPS Bank level.
Dependencies:
For this SQL Grid widget to display records in dcTrack, that dcTrack's DB must include non-virtual power chains with connected power ports that link up to the UPS level.

Download attachments:

PStoRPDUOutletToUPSBank.zip (25 Downloads)

Image Gallery
