Additional Info

• Mapped Fields:

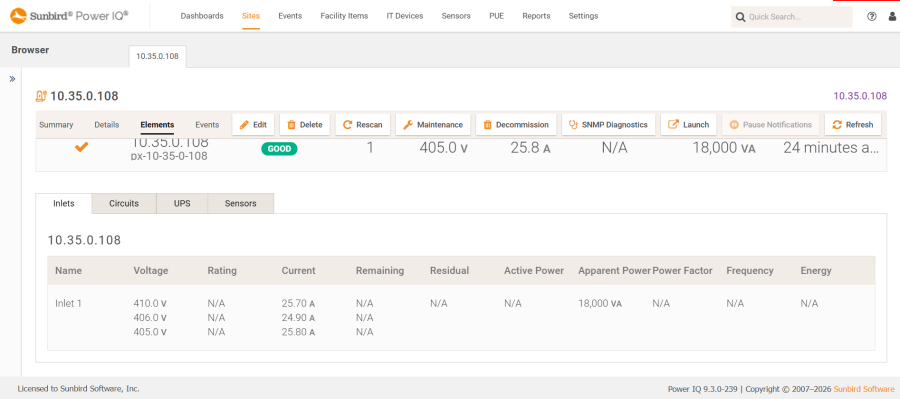

  inlet pole active power, inlet pole current, inlet pole voltage, circuit active power, circuit apparent power, circuit power factor, circuit watt hour, circuit pole index, circuit pole active power, circuit pole current, circuit pole voltage, external sensor temperature value, ups output source, ups output load percentage, battery status, battery capacity percentage, battery runtime remaining, battery current, battery voltage.

• Plugin Type: Structured
• Classification: SNMP
• Tested PowerIQ Version: 9.x
• Date Created: Tuesday, 10 February 2026
• Traps:

  Critical Alerts (Critical/Severe)

  • UPS Overload: Load exceeds 100% capacity.

  • UPS Diagnostics Failed: Internal self-test failed.

  • UPS On Battery: Switched to backup power.

  • Low Battery: Battery nearly exhausted; shutdown imminent.

  • UPS Battery Needs Replacement: Immediate replacement required.

  • Contact Fault: Environmental monitor contact failure.

  • Hardware Failure Bypass: Internal fault forced bypass mode.

  • Bypass Power Supply Failure: Base module power supply needs repair.

  • Base Fan Failure: Cooling fan requires repair.

  • Battery Pack Comm Lost: Communication with external packs lost.

  • UPS Input Contact Output Relay Fault: Critical relay hardware failure.

  • UPS Battery Pack Incompatible: Unsupported battery connected.

  Warning Alerts

  • UPS Discharged: Insufficient runtime guaranteed.

  • Smart Boost On: Voltage regulation active.

  • UPS Turned Off: Shutdown by management station.

  • UPS Sleeping: Power to load cut off.

  • UPS Reboot Started: System is restarting.

  • UPS Dip Switch Changed: Configuration altered.

  • Software Bypass: Manually set to bypass via software.

  • Switched Bypass: Manually set to bypass via panel.

  • Bad Voltage: Output voltage out of range.

  • Charger Failure: Battery charger not functioning.

  • Battery Over Temperature: Temperature threshold exceeded.

  • Smart Relay Fault: Relay hardware issue.

  • UPS Air Filter Warning: Service required.

• License: 5
• Make: Schneider
• Device Type: Floor UPS
